Double Your Shelf Facings for Soaps and Cosmetics Without Adding a Single Shelf
The POS-T Duplex XL from POS Tuning puts two spring-loaded pusher rows on one gondola shelf tier — 20 front-facing positions per set, one-click install from the shelf front, no tools. Built for soaps, dry shampoo, cosmetics, and packaged health items. Available across Canada and the US through ExpoShelf.
Health & Beauty Has Too Many SKUs for Standard Flat Shelving
Walk any health and beauty gondola and count the shelf tiers dedicated to a single brand's soap or dry shampoo lineup. If the category runs 30 to 50 active SKUs across three or four brands, you're already making planogram compromises before the first promotional swap of the season. Standard flat shelves give each product one row per facing — and when the category carries 100ml travel sizes alongside 400ml standard bottles, that one row rarely fits the full range.
The result is a section that looks incomplete: products buried behind each other, variants that don't make it to the floor, and brand partners who want more facings than the linear footage allows. Add in the pull-forward time on gondola rows where products don't self-feed, and the labour cost builds quickly across a multi-location operation.
- Standard flat shelving uses only the bottom half of the vertical space between gondola tiers — often 8–14 inches of clearance sitting empty
- Multiple SKU sizes per brand require more facings than a single shelf row allows
- Products at the back of non-spring-loaded rows require frequent manual pull-forward during each shift
- High SKU count forces planogram compromises — variants get cut, brand partners push back on allocation
- Restocking depth increases when product does not advance automatically to the shelf front

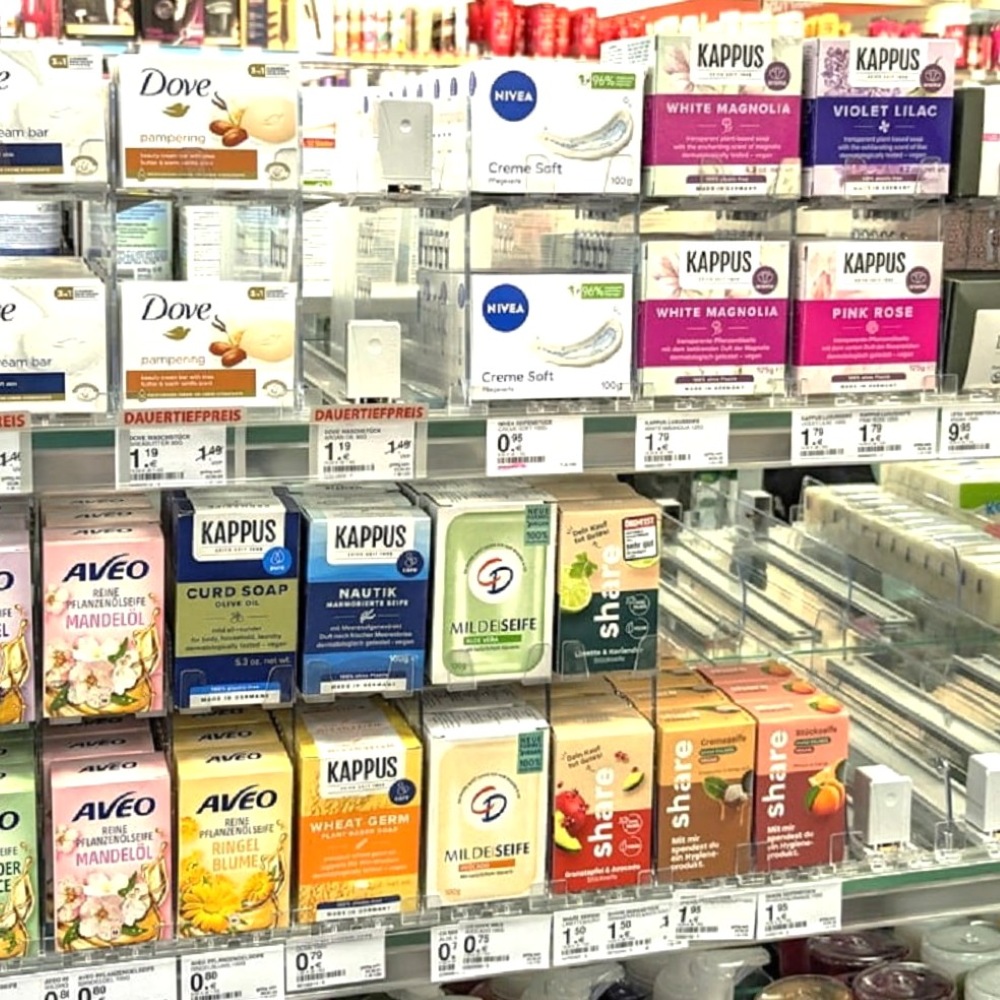

Two Spring-Loaded Rows on One Shelf — Same Depth, Double the Facings
The POS-T Duplex XL puts upper and lower spring-loaded pusher rows on one gondola shelf tier. Both levels face forward, both advance product to the front automatically. Five dividers and clip-on level brackets define the configuration. Each level runs its own SlowMotion 4Nt pushfeeds — firm enough to move product, gentle enough not to knock it over.
The set installs from the shelf front in a single click — no tools, no fixture modifications, no pulling product from adjacent facings. Three adjustable height settings on the upper level handle different product heights without a hardware swap. The result is more SKUs on the floor from the same gondola bay, with less daily maintenance than an unassisted flat shelf. Available through ExpoShelf for retail and wholesale quantities across Canada and the US. Review our full range of pharmacy and non-food shelf management systems for complementary configurations.
One Set. Two Levels. No Extra Fixtures Required.
Two Levels, One Shelf Footprint
Upper and lower SlowMotion pusher rows sit at different heights on the same gondola shelf tier. Both levels advance product to the front automatically. The system uses the vertical clearance between shelf tiers — typically 8–14 inches — that standard flat shelving leaves completely empty. No additional shelf tiers needed, no bay modifications required.
Front "One-Click" Installation
The dividers, level clips, and pushfeeds all install from the shelf front with a single click per component — no tools, no drilling, no fixture removal. The entire 20-facing set goes in without touching adjacent bays or pulling product from neighbouring facings. Reconfiguring for a planogram reset takes minutes, not a full aisle shutdown. See our installation guides for step-by-step setup.

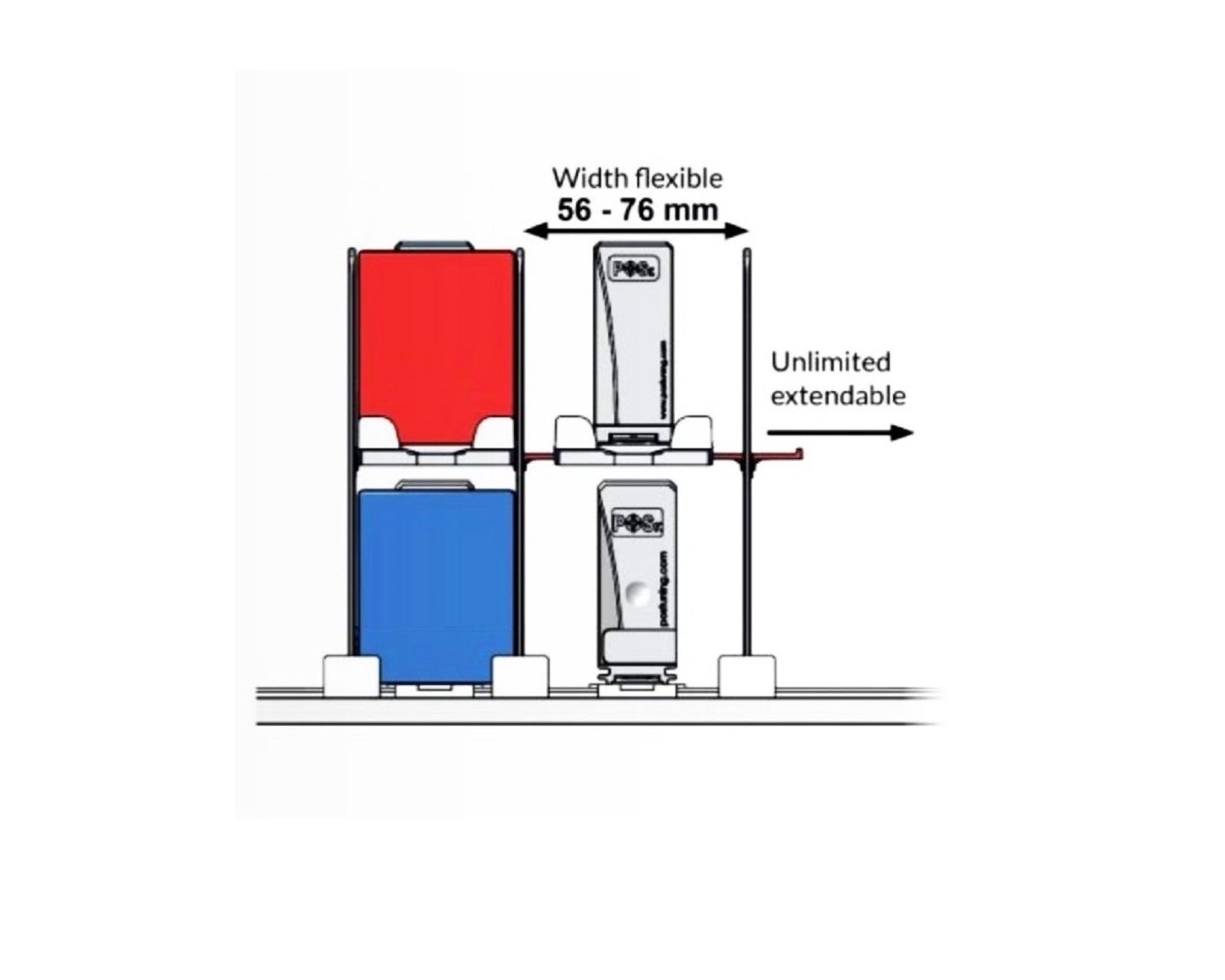

Adjustable Width and Height Per Facing
Each pusher slides to fit product width continuously from 2.2" to 3.1" (56–78 mm), with no fixed slot spacing. Mix a 2.4" soap bar next to a 3.0" dry shampoo bottle in the same set without spacers. The upper level also offers three height positions, so different product heights run side by side without a hardware swap or level rebuild.
| Specification | Details |
|---|---|
| Set Configuration | 20-facing double-level set |
| Duplex XL Dividers (per set) | 11 |
| Level Clips (per set) | 42 Duplex XL clip-ons |
| Pushfeeds (per set) | 10 upper + 10 lower SlowMotion 4Nt |
| Required Shelf Depth | 14.9" (380 mm) minimum |
| Minimum Vertical Clearance | 8.2" (210 mm) between shelf tiers |
| Product Width Range | 2.2"–3.1" (56–78 mm) · continuously adjustable |
| Height Settings | 3 adjustable positions for upper level |
| Pusher Spring Force | 4Nt (SlowMotion) — gentle product advancement |
| Material | High-quality acrylic · transparent |
| Pusher Compatibility | 100% compatible with all POS-T Pushfeed systems |
| Installation | Tool-free front "one-click" · no drilling or fixture modification |
| Customization | Available on request — contact ExpoShelf with specs |
| Manufacturer | POS Tuning GmbH (Germany) |
| Available in North America | ExpoShelf — Metro Vancouver, BC · ships to US & Canada |
More SKUs on the Floor. Less Manual Labour. Same Gondola Bay.
The Category Owners Who Need More Out of Every Shelf Tier
Health & Beauty Category Managers
You're fitting 40+ soap and cosmetic SKUs into gondola space that was allocated before the category doubled in variant count. The Duplex XL lets you run two brand facings per tier instead of one — without expanding the fixture footprint or pulling from adjacent categories.
Pharmacy & Drug Store Managers
HBC sections in pharmacy retail run tight margins on labour. Every minute of manual pull-forward on a flat shelf adds up across a chain. Spring-loaded pushers on both levels mean product stays at the front between restocks — without a staff member touching it between fills.
Fixture & Display Agencies
Specifying the Duplex XL in a health and beauty fixture build adds a measurable facing density improvement over standard flat shelf proposals. It's a line item that client category managers understand immediately — double the facings, same gondola, no construction. Browse the full shelf management range for complementary systems.
What Category and Operations Teams Ask Before Ordering
What products work with the POS-T Duplex XL?
The Duplex XL is designed for packaged products between 2.2 and 3.1 inches (56–78 mm) wide — soaps, dry shampoos, cosmetics, health items, and similarly sized packaged goods. Width adjusts continuously across that range, so you can mix product sizes across the same set without spacers or reconfiguration. It is not suited for very tall items — the upper-level height setting caps out based on the available inter-shelf clearance.
What shelf depth and vertical clearance does the Duplex XL require?
You need at least 14.9 inches (380 mm) of shelf depth and a minimum of 8.2 inches (210 mm) of vertical clearance between shelf tiers. Most standard North American gondola shelves run 16–18 inches deep, which is sufficient. Verify your tier spacing before ordering — shelves set closer than 8.2 inches will not accommodate the double-level configuration. If you are unsure about your fixture specs, contact ExpoShelf before placing an order.
Does the POS-T Duplex XL require tools to install?
No. The entire set installs from the shelf front with a single click per component — no screwdrivers, no drilling, no fixture removal. Dividers, level clips, and pushfeeds all position by hand. Most store staff can install a full 20-facing set without prior experience with the system. Setup time is comparable to loading a standard shelf divider system.
Can the Duplex XL accommodate different product heights on the same shelf?
Yes. The upper level offers three adjustable height positions, allowing you to set the clearance based on the tallest product in the facing. This makes it practical to run a 4-inch bar soap next to a 6-inch dry shampoo bottle in the same set — both levels at the right height, no hardware swaps between positions.
How do I order the POS-T Duplex XL in Canada or the US?
ExpoShelf is the official POS Tuning distributor for Canada and the US, based in Metro Vancouver, BC. They carry the POS-T Duplex XL in standard configurations and can quote custom orders including alternative set sizes and colour options. Submit a request at ExpoShelf contact page — response is typically within one business day. You can also request the full product catalog to review the complete POS Tuning shelf management range.
Ready to Double the Facings on Your Health & Beauty Shelves?
Tell us your shelf depth, tier spacing, and product widths and we'll confirm whether the Duplex XL is the right fit. Sample kits are available for in-store trials before committing to a full rollout. You can also request our full product catalog to review the complete POS Tuning double-level and pusher system range.
