Flawless Wine & Spirits Presentation. Maximum Bottle Facings.
The Gentle SloMo™ Pusher for Premium Bottles & Fast Planogram Resets.
Display your wine, champagne, and spirits in an eye-catching presentation that invites shoppers to pick them up. POS-T SuperVario SloMo automatically glides heavy bottles forward with whisper-quiet mechanical damping—maximizing facings, slashing manual facing labor by 70%, protecting boutique labels, and adapting to any bottle size in seconds with tool-free one-finger width adjustment.

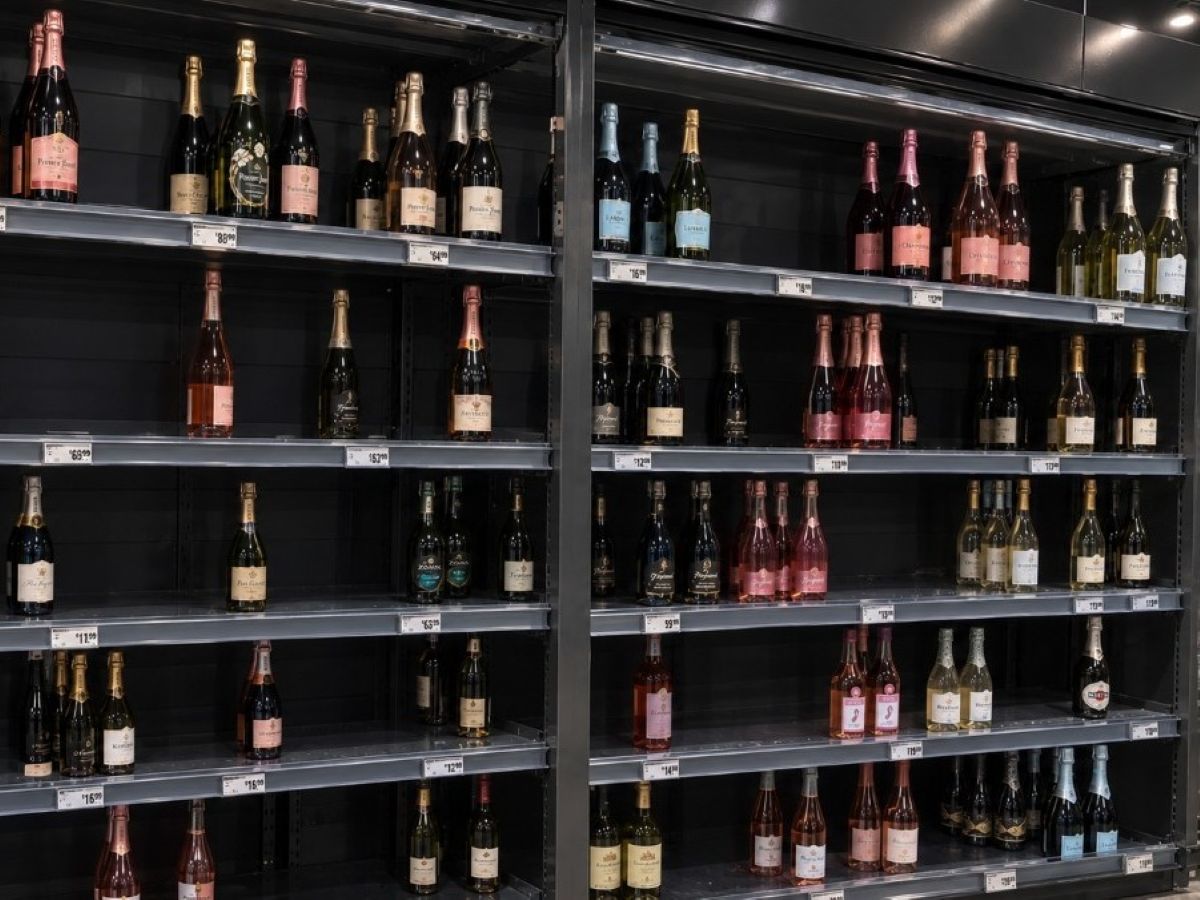

Deep Gondola Shelves Hide High-Margin Bottles and Waste Valuable Labor Hours
Wine and spirits represent some of retail's highest-margin SKUs, but standard retail gondolas work against premium merchandising. As shoppers take front bottles, remaining inventory slides backward into dark shadows, triggering false out-of-stock impressions and lost sales.
Dark Shadows & Lost Impulse Buys
Recessed bottles lose ambient lighting, making labels unreadable and reducing impulse purchases by up to 15%.
Expensive Manual Shelf Grooming
Associates spend 30 to 45 minutes per bay daily pulling bottles forward and straightening irregular rows.
Rigid Dividers Stall Resets
Fixed-width wire racks require disassembling entire bays just to accommodate a wider Champagne or Bourbon SKU.
Damage from Abrupt Snap Springs
Uncontrolled pushers slam heavy glass bottles together, chipping foil capsules and scuffing delicate labels.
- Shoppers reach deep into dark shelves, knocking over adjacent bottles and causing expensive glass breakage.
- Planogram resets take hours because traditional dividers require measuring, unbolting, and re-spacing hardware.
- Slanted gravity feed shelves sacrifice valuable vertical clearance, cutting a full shelf tier per bay.
Patented SloMo Mechanical Gear Governor Meets One-Finger Width Agility
The POS-T SuperVario SloMo delivers flawless wine aisle presentation through German precision engineering, pairing a calibrated 10 to 14 Newton spring with a patented precision mechanical spring brake.
1. Patented SloMo™ Mechanical Deceleration (Soft-Stop Controlled Glide)
When a bottle is removed, the engineered plastic gear damper acts as a smooth spring brake. Bottles advance in a smooth ~1 second motion, docking softly at the front stop with zero impact shock or clattering.
2. One-Finger Stepless Width (53–97 mm)
Pull the central slot with one finger to adapt lane width on the fly from slender 2.75″ (70 mm) dessert flutes to 3.62″ (92 mm) Champagne bases and 3.82″ (97 mm) craft bourbon carafes without tools.
3. Elevated 4.06″ (103 mm) Guidance Sidewalls
Deep full-profile sidewalls keep tall, top-heavy bottles completely upright. Protects delicate foil capsules and boutique labels while eliminating bottle wobble during front-aisle restocking.

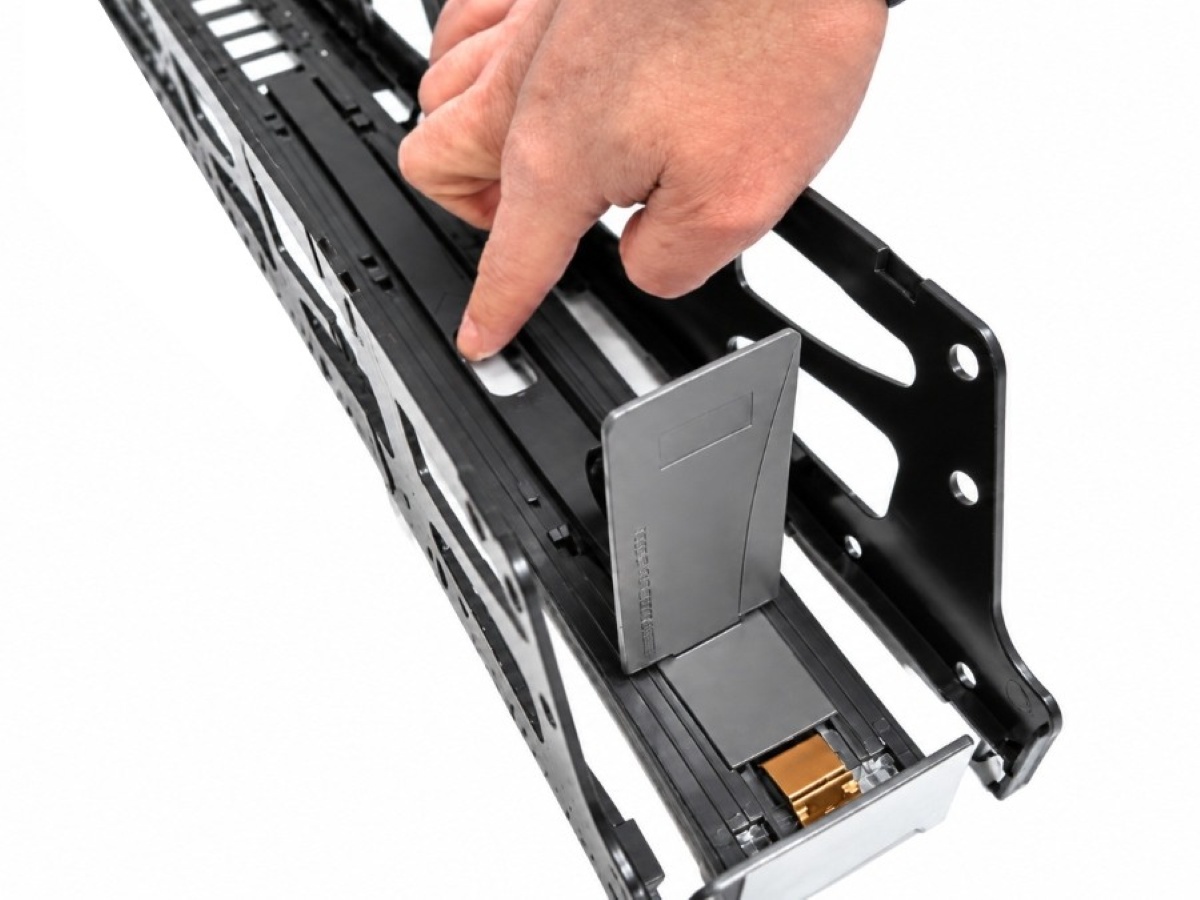

One-Finger Stepless Width Adjustment with Zero Tools
The SuperVario system adapts to your changing wine catalog in seconds. Swap from slender dessert flutes to wide Champagne bottles without removing fixtures or ordering replacement dividers.
Patented SloMo Mechanical Damping
An internal sealed mechanical spring brake controls forward velocity. Heavy 25.4 oz to 42.3 oz / 750 ml to 1.25 L bottles glide softly forward in a controlled ~1 second glide, eliminating shock and glass impact.

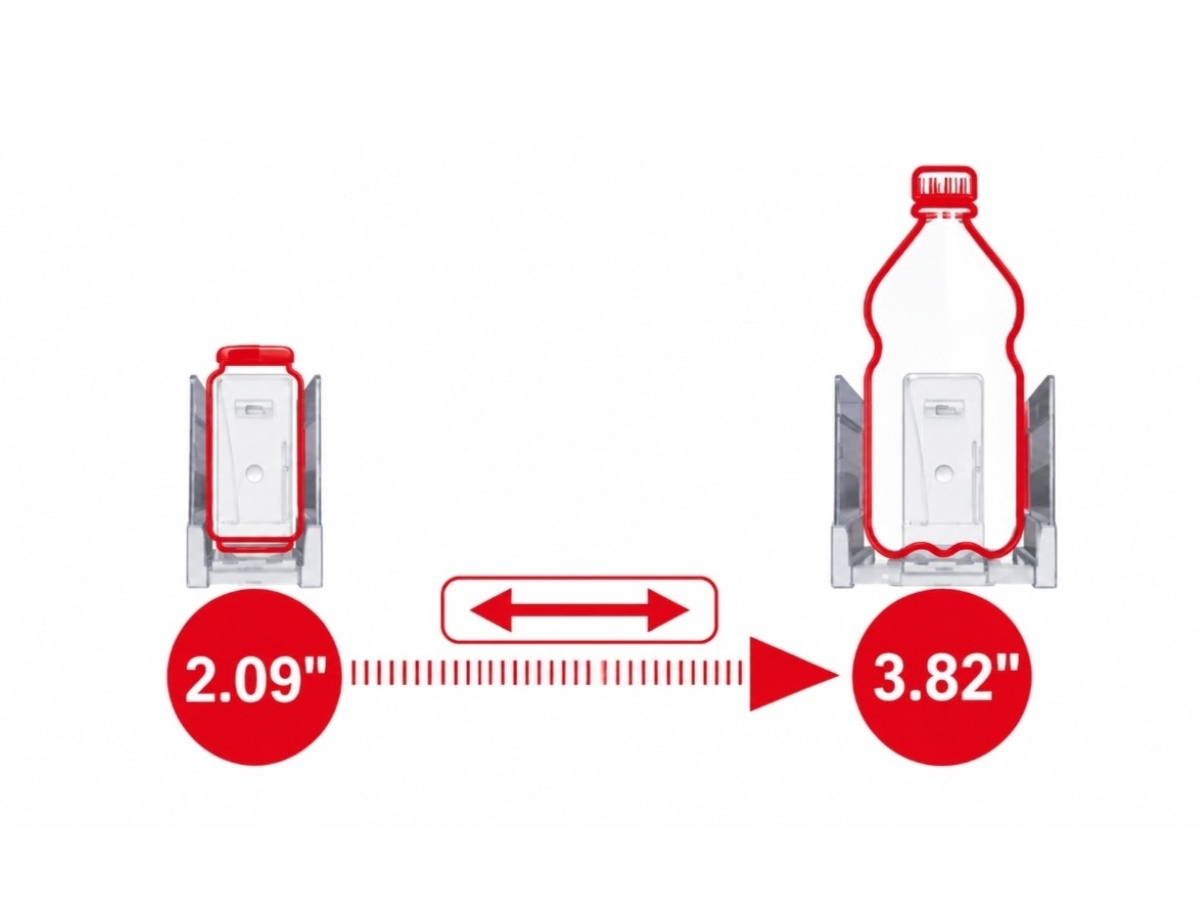

Stepless 2.09″ to 3.82″ Width
Insert one finger into the central channel slot to expand or contract width from 2.09″ to 3.82″ (53 to 97 mm). Integrated friction retention locks the exact width instantly without tools, even with stock in the channel.

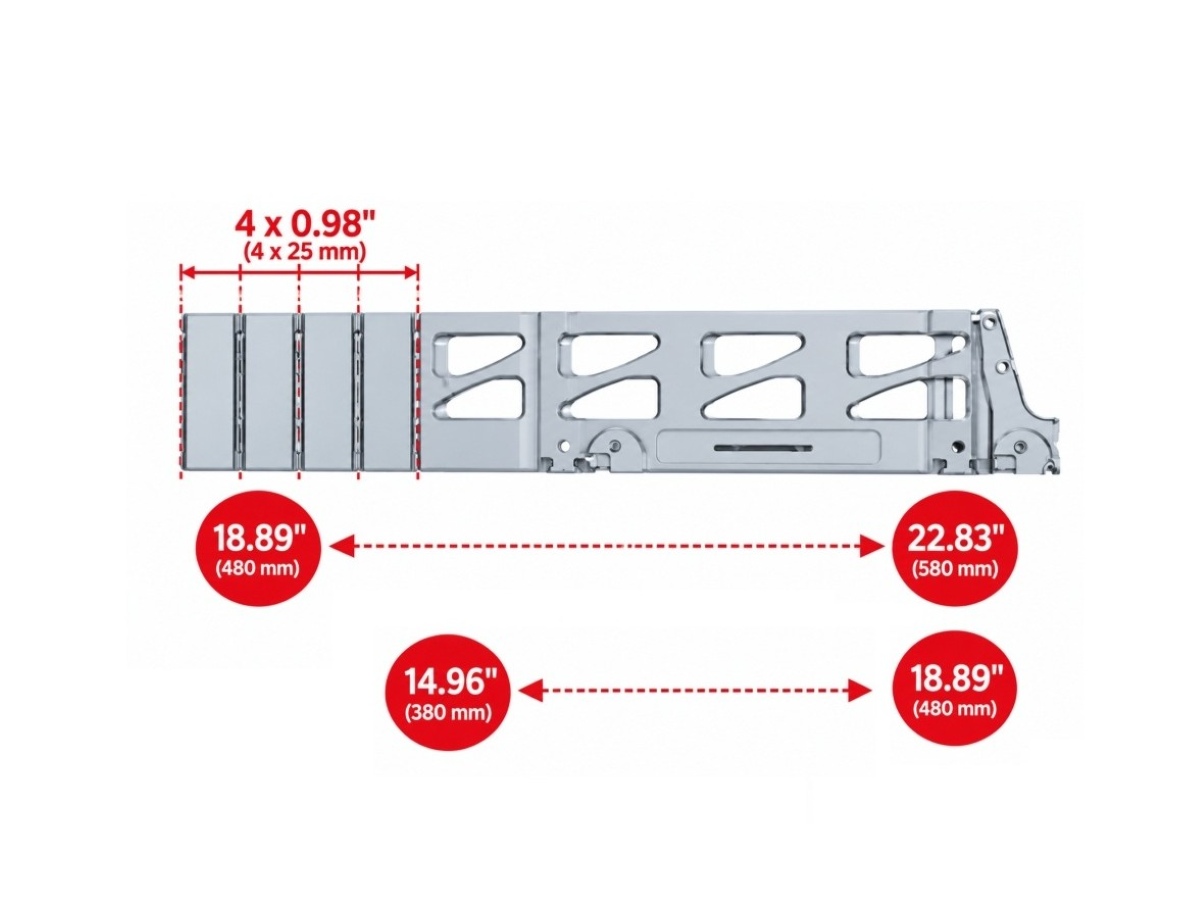

Modular Breakable Depth
Pre-notched snap break points every 1.0″ (25 mm) let store teams size channels cleanly for 16″, 18″, 20″, and 22″ gondola shelves. Two base models cover depths from 14.96″ to 22.83″ (380 to 580 mm).

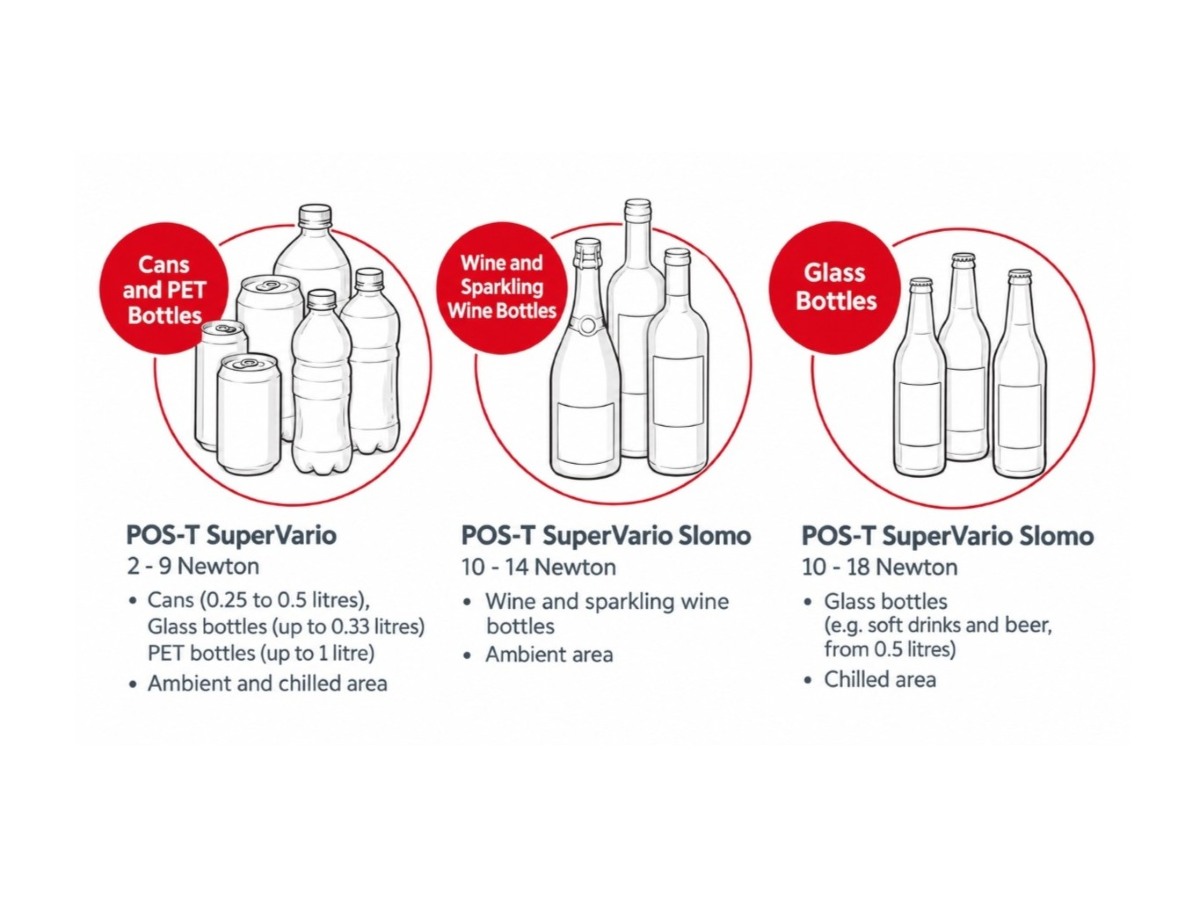

Selecting the Correct Spring Force: Why Wine & Spirits Uses Calibrated 10 to 14 Newton
Calibrating spring push force to product weight and environment is essential for smooth operation and product safety.
Wine & Spirits: 10 to 14 Newton SloMo
Heavy 750 ml to 1.25 L glass bottles on ambient dry shelving need 10–14 N of spring force to push the queue reliably. The SloMo gear damper absorbs spring rebound, eliminating bottle impact shock.
Chilled Coolers vs. Lightweight Cans & PET
Cooler Glass Bottles: 10 to 18 Newton SloMo (Item 30014497 / 30014498)
Chilled cases require 10–18 N to push through cold moisture friction drag.
Cans & PET: 2 to 9 Newton (Item 30014159 / 30014160)
Lightweight containers require lower spring force to prevent crushing thin aluminum walls.
Why Retailers Choose POS-T SuperVario SloMo Over Legacy Systems
Compare POS-T SuperVario SloMo against conventional catalog pushers, slanted gravity tracks, and static plastic trays.
| Feature / Capability | POS-T SuperVario SloMo | Standard US Catalog Pushers | Slanted Wire Gravity Tracks |
|---|---|---|---|
| Speed & Deceleration Control | Patented Mechanical Gear Damper: Gentle ~1s controlled glide; zero impact shock. | No Damping: Springs snap aggressively, slamming heavy bottles into front stops. | Gravity Dependent: Bottles accelerate down incline; high risk of tip-overs. |
| Width Adjustment | Stepless 2.09″–3.82″ / 53–97 mm: One-finger pull; locks by friction with zero tools. | Fixed width or requires tools and loose adapter clips. | Fixed wire lanes; requires replacing entire wire shelf modules. |
| Shelf Angle & Clearance | 100% Flat Horizontal: Maximizes vertical bay clearance for more shelf tiers. | Flat horizontal. | Steep 10°–15° Forward Tilt: Wastes 2–4 inches of vertical headspace per bay. |
| Planogram Reset Speed | 15-Second Snap Off: Lift fully loaded channel off rail to reconfigure spacing. | Must unload all bottles, unbolt dividers, and remount parts. | Requires full shelf tear-down and wire frame adjustments. |
| Bottle Protection | Full 4.06″ (103 mm) Sidewalls: Eliminates wobble, scuffed labels, and neck chipping. | Low sidewalls allow tall, top-heavy bottles to lean and fall. | Metal wire rubs and scratches boutique paper labels. |
One Channel Accommodates Every High-Margin Packaging Format
Stepless continuous width sizing means a single SKU handles your entire wine, champagne, and spirits portfolio.
Slender Flutes & Whites
2.09″–2.83″ (53–72 mm)
Riesling, Pinot Grigio, Sauvignon Blanc, Ice Wine, and dessert wines fit firmly without swaying, leaning, or tipping sideways.
Bordeaux & Burgundy
2.91″–3.31″ (74–84 mm)
Traditional 25.4 oz / 750 ml Cabernet, Merlot, Pinot Noir, and Chardonnay bottles glide straight forward with 100% planogram facing alignment.
Champagne & Sparkling
3.31″–3.62″ (84–92 mm)
Wide-base Champagne, Prosecco, and Cava bottles sit securely in widened channels with zero side friction or jamming.
Bourbon, Whiskey & Spirits
2.56″–3.82″ (65–97 mm)
Heavy square bourbon carafes, scotch whiskey, artisanal gin, tequila, and liqueur bottles up to 42.3 oz / 1.25 L push evenly with full sidewall guidance.
Measurable Business Impact Across Retail Beverage Aisles
POS-T SuperVario pays for itself through reduced labor, eliminated bottle breakage, and increased customer conversion.
Specialized Configurations for Every Category & Environment
While this page focuses on SloMo 10–14 N for wine and spirits bottles on standard ambient shelving, POS Tuning offers dedicated SuperVario variants calibrated for other retail applications:
SuperVario SloMo (10–18 N) for Beverage Coolers
Calibrated for 12 oz longnecks, craft beer, gourmet sodas, and chilled mixers in refrigerated cases (28°F to 50°F / -2°C to +10°C). Overcomes moisture drag and wire track friction with 10–18 Newton SloMo damping force.
SuperVario (2–9 N) for Beverage Cans & PET
Standard spring tension for lightweight aluminum cans (8.5 oz to 16.9 oz / 250–500 ml tallboys) and PET bottles. Easily upgrades with modular POS-T Pillars for double-stack vertical facings (up to +44% more capacity).
SuperVario Pure (2–9 N) for Cosmetics
Featuring crystal-clear transparent tracks and front plates, SuperVario Pure delivers luxury presentation for facial creams, skincare jars, lotions, and high-end personal care merchandise.
POS-T SuperVario SloMo System Architecture
| Specification | Details & Parameters |
|---|---|
| System Name | POS-T SuperVario SloMo for Wine & Spirits |
| Standard Length Variant | 14.96″ to 18.90″ (380 to 480 mm) · Item No. 30014148 ($23.90 USD list) |
| Extended Length Variant | 18.90″ to 22.83″ (480 to 580 mm) · Item No. 30014149 ($26.50 USD list) |
| Stepless Width Range | 2.09″ to 3.82″ (53 to 97 mm) with one-finger pull & friction-lock retention |
| Profile Sidewall Height | 4.06″ (103 mm) — elevated guidance prevents top-heavy bottle tipping |
| Spring Push Force | 10 to 14 Newton / 2.25 to 3.15 lbf calibrated for 25.4 oz to 42.3 oz / 750 ml to 1.25 L glass packaging |
| Damping Mechanism | Integrated sealed mechanical spring brake (absorbs spring impulse for controlled forward glide) |
| Depth Break Points | Pre-notched snap increments every 1.0″ (25 mm) down to 14.96″ (380 mm) |
| Color & Material | Anthracite UV-stabilized high-durability polymer |
| Packaging Unit (PU) | 10 pieces per box |
| Bottle Capacity per Channel | 480 mm (18.90″) Track: 5 standard 750 ml wine bottles (17.12″ / 435 mm net depth) 580 mm (22.83″) Track: 7 standard 750 ml wine bottles, 6 spirits bottles, or 5 large-format bottles (21.06″ / 535 mm net depth) |
| Compatible Packaging | Wine, Champagne, Sparkling Wine, Bourbon, Whiskey, Gin, Rum, Vodka, Tequila, Liqueurs (25.4 oz / 750 ml, 33.8 oz / 1.0 L, up to 42.3 oz / 1.25 L) |
| Mounting Rail Options | Universal Adapter-T Rail A003 in custom lengths — available in two variants: (1) for standard shelves with reusable adhesive tape, (2) for wire shelves with clips |
| Dedicated Labelholder | POS-T SuperVario Labelholder E049 SloMo 4.02″ (102 mm) · Item No. 30014604 ($0.50 USD) |
| Channel Connection Clip | POS-T SuperVario Connection Clip 0.47″ × 0.47″ × 0.39″ (12 × 12 × 10 mm) · Item No. 30013119 ($0.50 USD) |
| Manufacturer | POS Tuning (Germany) |
| North American Distributor | ExpoShelf · Direct B2B delivery across the US and Canada |
Pricing & Commercial Ordering Information
Listed prices are reference Manufacturer Suggested Retail / List Prices (USD). Commercial B2B volume discounting is applied based on project bay count, roll-out timeline, and retailer tier.
Fast 3-Step Setup on Metal, Wood, Glass, or Wire Shelving
No drilling, screws, or complex tools required. Reconfigure shelf bays in minutes.
Attach Adapter-T Rail
Attach universal Adapter-T Rail A003 (supplied in custom lengths): use the reusable adhesive tape variant for standard metal, wood, or glass shelves, or the clip-on variant for wire shelves.
Click & Size Channel
Click the SuperVario channel onto the rail. Snap off excess rear length along the pre-notched 1.0″ (25 mm) break points to match your shelf depth.
One-Finger Width Adjustment
Insert one finger into the center slot, pull outward to match your bottle diameter (53 to 97 mm), load bottles, and attach the E049 SloMo price labelholder.
Official POS-T SuperVario Installation Guide
Watch the official POS TUNING video tutorial detailing rail attachment, break-notch sizing, one-finger width adjustment, and 15-second loaded planogram resets.
Everything Category Teams Ask Before Specifying
How does the SloMo mechanism ensure smooth forward movement for heavy wine and spirits bottles?
Standard spring pushers can snap forward abruptly when a front bottle is removed. The POS-T SuperVario SloMo integrates a specially engineered plastic spring brake directly into the pusher mechanism. When a bottle is removed, the damper absorbs spring impulse and acts as a speed governor, advancing the remaining bottles in a controlled, smooth ~1 second glide that halts softly at the front stop with zero impact shock.
How quickly can store staff adjust channel width during planogram resets?
The SuperVario features stepless one-finger width adjustment from 2.09 to 3.82 in / 53 to 97 mm. Store associates can reconfigure lane widths in seconds with zero tools, swapping from a narrow Riesling flute to a wide Burgundy, Champagne, or artisanal bourbon bottle instantly—even with stock loaded in the channel.
How many wine and spirits bottles fit in the smaller and longer track versions?
Usable channel depth equals total track depth minus 1.77 in / 45 mm (pusher head base):
- 18.90 in / 480 mm Track: Provides 17.12 in / 435 mm net usable depth and holds 5 standard 750 ml wine bottles (75–82 mm diameter).
- 22.83 in / 580 mm Track: Provides 21.06 in / 535 mm net usable depth and holds 7 standard 750 ml wine bottles, 6 standard spirits bottles (85 mm), or 5 large-format bottles (95 mm).
What shelf depths are supported by the SuperVario Wine & Spirits system?
The system is depth-variable and covers shelf depths from 14.96 to 22.83 in / 380 to 580 mm. Standard models come in 14.96 to 18.90 in / 380 to 480 mm (Part #30014148, shortens down to 380 mm) and 18.90 to 22.83 in / 480 to 580 mm (Part #30014149, shortens down to 480 mm), featuring pre-notched snap breaks every 1.0 in / 25 mm for tool-free sizing to any retail gondola bay.
What spring force is calibrated for wine and spirits bottles?
For standard dry shelving wine and spirits glass packaging (750 ml to 1.25 L), SuperVario is calibrated with a 10 to 14 Newton spring force paired with the SloMo mechanical gear damper. This delivers the exact force needed to advance heavy bottle queues smoothly without pushing too hard against the front fence.
How does the SuperVario mount to metal gondolas, wood shelves, and wire racks?
The SuperVario system mounts using universal POS-T Adapter-T Rails (A003), available in custom lengths in two dedicated variants: (1) for standard flat shelves (metal, wood, or glass) with reusable adhesive tape that can be repositioned multiple times, and (2) for wire shelves with heavy-duty snap clips that attach securely without tools or tape.
Ready to Eliminate Shelf Gaps and Cut Labor Hours?
Join leading retail liquor chains and supermarkets across the United States and Canada that trust POS-T SuperVario SloMo for front-faced bottle presentation, faster planogram resets, and zero bottle breakage.
