One Channel for Every Beverage Format — From 250ml Slim Cans to 1.5L Bottles, No Tools, No Conversion
The POS-T SuperVario adjusts channel width from 2.09″ to 3.82″ (53–97 mm) with a single finger — no tools, no shelf reset, no second system. Spring-loaded pushers keep every can and bottle front-facing between restocking cycles. Trusted by Carrefour, Aldi, and REWE in Europe. Now available across Canada and the US through ExpoShelf.
The Beverage Aisle Loses 5% of Weekly Sales to Shelf Mismanagement
Beverages come in more sizes than any other grocery category — 250 ml energy drink cans, 355 ml standard cans, 473 ml tall boys, 500 ml bottles, 1 L cartons, 1.5 L water bottles — all expected to sit on the same gondola bay. Standard fixed-width pusher channels handle one format. When the planogram changes, the entire channel has to change too: different channels ordered, tools required, staff time consumed.

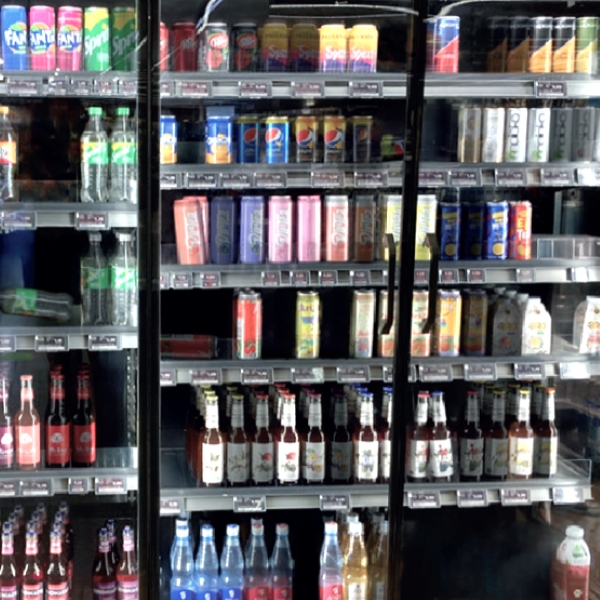

Between those resets, product drifts to the back of the shelf, cans tip over, and the aisle deteriorates. Customers can't see stock that's still there — creating invisible out-of-stocks that cost sales without triggering a replenishment order. The 5% weekly sales loss is rarely attributed to shelf management, which means it rarely gets fixed.
- Fixed-width channels require full replacement when a new beverage format is introduced
- Different can and bottle widths demand separate pusher systems — higher SKU count, higher cost
- Staff spend hours manually facing cans and reorganizing tipped-over products between restocks
- Products pushed to the back create invisible out-of-stocks — customers walk away, shelves appear full
- Planogram changes require tools and full shelf resets — downtime reduces sales
- Messy beverage bays drive customers to competitors with cleaner, easier-to-shop presentations
One System. Every Format. Width Adjusts in Seconds With One Finger.

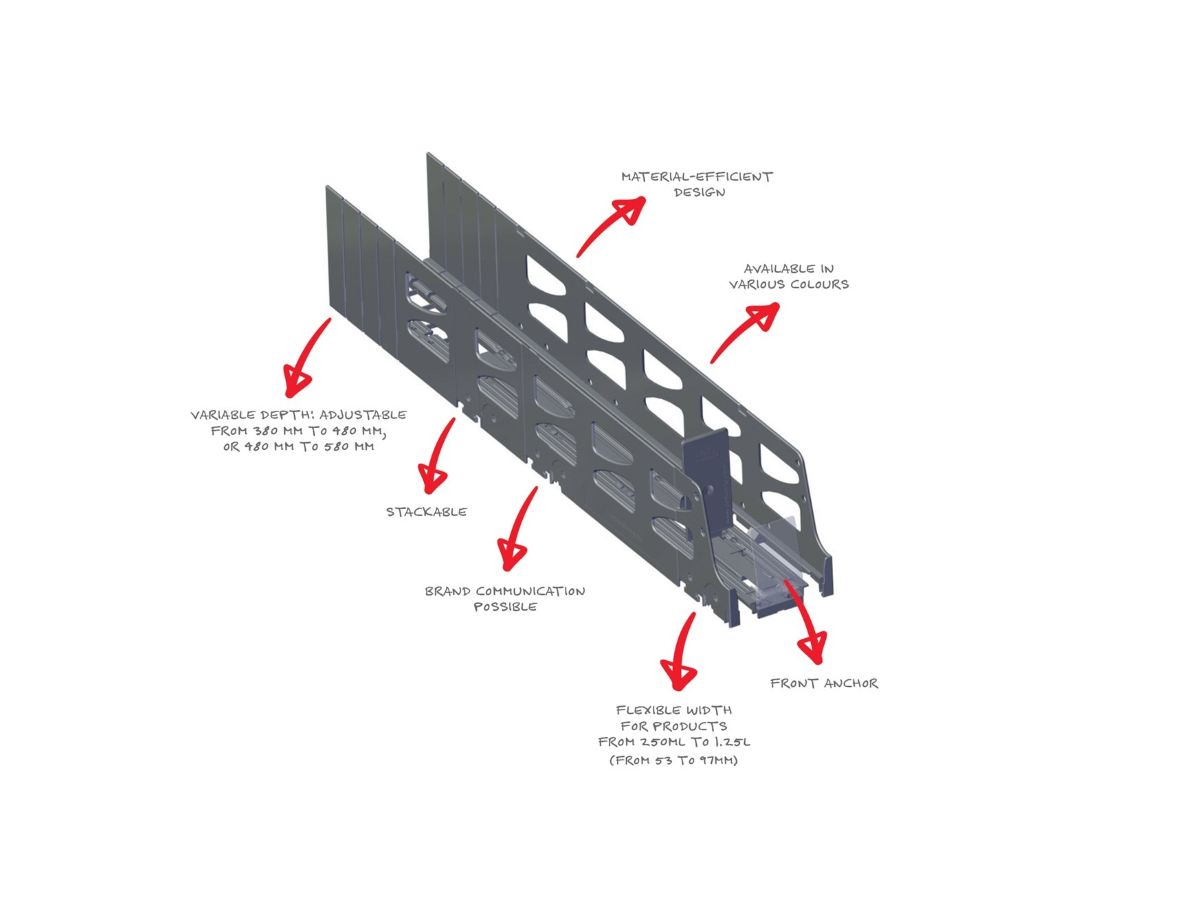

The POS-T SuperVario is a single beverage pusher channel that covers the full width range from 2.09″ to 3.82″ (53–97 mm) — wide enough for a 1.5L bottle, narrow enough for a 250 ml slim can. Insert one finger into the guide profile opening, pull gently, and the channel opens to the desired width. No tools. No conversion parts. No second channel required.
Spring-loaded pushers advance product to the front automatically after every customer pick. Stable dividers hold cans and bottles upright and guide them to the front within the channel. The system mounts on Adapter-T Rails and fits metal, wire, and other shelf materials. Planogram changes are handled by removing the channel with the product inside and reinstalling it in the new position — no tools, no empty shelf, no downtime. Browse the full POS Tuning shelf system range available through ExpoShelf.
One Finger Adjusts the Width. Spring Pushers Do the Rest.
One-Finger Width Adjustment — No Tools
Insert one finger into the opening in the middle of the channel's guide profile and gently pull. The side sections open continuously from 2.09″ (53 mm) to 3.82″ (97 mm). The adjustment takes seconds and can be done mid-aisle without removing product from the channel. When a new beverage format arrives, adapting the shelf takes less time than reading a planogram instruction sheet.
Spring Pushers Keep Every Product Front-Facing
Spring-loaded pushers advance the next product to the shelf edge automatically after every customer pick. Stable dividers hold cans and bottles upright and guide them forward within the channel. The beverage aisle maintains a clean, fully-faced appearance between restocking cycles without any staff involvement — cutting labor by up to 70% compared to manual facing — with seasonal and promotional planogram changes taking minutes to accommodate new product sizes.
Planogram Changes Without Downtime
The SuperVario removes from the shelf together with the product inside — carry it to the new position and reinstall on the Adapter-T Rails. No empty shelf, no removed product, no reset tools required. The channel depth is also adjustable: available in 22.8″ (580 mm) and 18.9″ (480 mm), shortenable in 1″ (25 mm) increments up to 3.9″ (100 mm) to match any gondola shelf depth. See our installation guides for step-by-step setup.
Official POS-T SuperVario Installation Guide
Watch the official POS TUNING video tutorial detailing rail attachment, break-notch sizing, one-finger width adjustment, and 15-second loaded planogram resets.
| Specification | Details |
|---|---|
| System Name | POS-T SuperVario |
| Item Code / MPN | 30014160 |
| Channel Width Range | 2.09"–3.82" (53–97 mm) · continuously adjustable · tool-free |
| Available Depths | 22.83" (580 mm) · 18.90" (480 mm) |
| Depth Adjustability | Shortenable in 1" (25 mm) increments · up to 3.94" (100 mm) reduction per depth. Means 14.96" (380 mm) length would be the shortest. |
| Height (stacking) | Single product · or two-tier stacking with side strings |
| Width Adjustment | 1-finger operation · no tools required |
| Pusher Type | Spring-loaded · automatic product advancement to shelf front |
| Compatible Products | 250 ml (8.4 fl oz) slim cans to 1.5 L (50.7 fl oz) bottles · also cans, sauces, coffee |
| Shelf Compatibility | Metal · wire · other shelf materials · via Adapter-T Rails |
| Reference Price | $17.00 USD (short version 380–480 mm) · $20.90 USD (long version 480–580 mm) |
| Minimum Order (MOQ) | 8 Boxes (80 pcs) |
| Packaging Unit (PU) | 10 pieces per box |
| Availability | Pre-Order |
| Parts Required | 1 Adapter-T Rail + POS-T SuperVario channel (for stacked two-tier option: 1 adapter rail + 4 pillars to install upper channel over lower) |
| Standard Color | Anthracite · custom colors available on request |
| Branding Option | Front plate for custom branding & custom color options available (MOQ to discuss) |
| Planogram Changes | Remove channel with product intact · reinstall at new position · no tools |
| Manufacturer | POS Tuning (Germany) |
| Available in North America | ExpoShelf — Direct supply across the US & Canada |

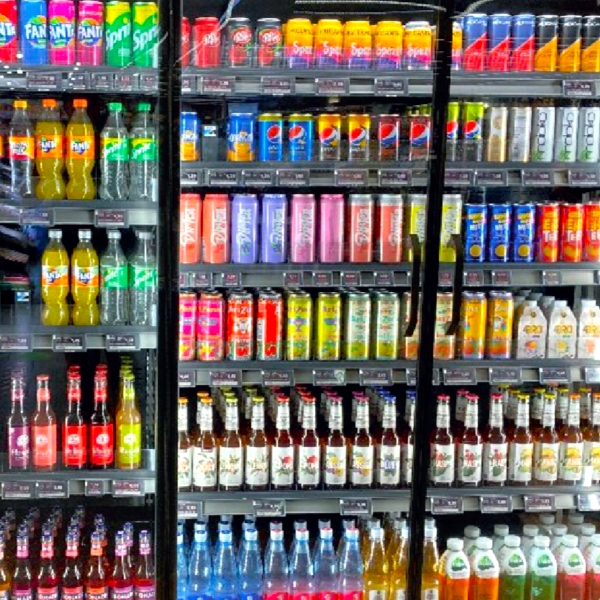

Fewer Stockouts. Less Labor. A Beverage Aisle That Stays Faced All Day.
The +44% facings increase maximizes revenue density per shelf bay. The up to 70% labor reduction reflects automated front-facing combined with rapid, tool-free seasonal and promotional planogram adjustments.
The Operators and Category Teams Managing the Beverage Bay
Beverage Category Managers
Managing 10–30 SKUs across can sizes, bottle formats, and seasonal additions in a single bay. The SuperVario eliminates the per-format pusher procurement cycle and makes format changes a field operation rather than a planogram rebuild. One system handles every width from a 250ml energy drink can to a 1.5L water bottle.
Grocery Store Operators
Restocking labor and shrinkage from invisible out-of-stocks are two of the biggest controllable cost items in a beverage department. The SuperVario's spring-loaded pushers cut labor by up to 70% — both in daily restocking and fast seasonal resets — while eliminating the invisible out-of-stock problem that causes 5% weekly sales loss. Works in coolers and dry shelving equally well. Book a free demo to see the system on your shelf type.
Retail Merchandising & Fixture Teams
Planning or executing a beverage bay reset across multiple locations. The SuperVario's two-part system (Adapter-T Rails + channel) standardizes the fixture spec across the chain, and its tool-free adjustment means field staff can adapt to local planogram variations without carrying conversion kits. Request us for the full POS Tuning catalog for complementary systems.
Specialized Configurations for Every Category & Environment
While this page focuses on SuperVario (2–9 N) for center-store beverage cans and PET bottles, POS Tuning offers dedicated SuperVario variants calibrated for other retail applications:
SuperVario SloMo (10–18 N) for Beverage Coolers
Calibrated for 12 oz longnecks, craft beer, gourmet sodas, and chilled mixers in refrigerated cases (28°F to 50°F / -2°C to +10°C). Overcomes moisture drag and wire track friction with 10–18 Newton SloMo damping force.
SuperVario SloMo (10–14 N) for Wine & Spirits
Engineered for 25.4 oz (750 ml) wine bottles, champagne, and spirits on standard dry gondolas. Without cooler moisture drag, the calibrated 10–14 Newton SloMo mechanism provides an ultra-smooth glide with optimal front pressure.
SuperVario Pure (2–9 N) for Cosmetics
Featuring crystal-clear transparent tracks and front plates, SuperVario Pure delivers luxury presentation for facial creams, skincare jars, lotions, and high-end personal care merchandise.
What Grocery and Beverage Teams Ask Before Ordering
What beverage formats does the POS-T SuperVario accommodate?

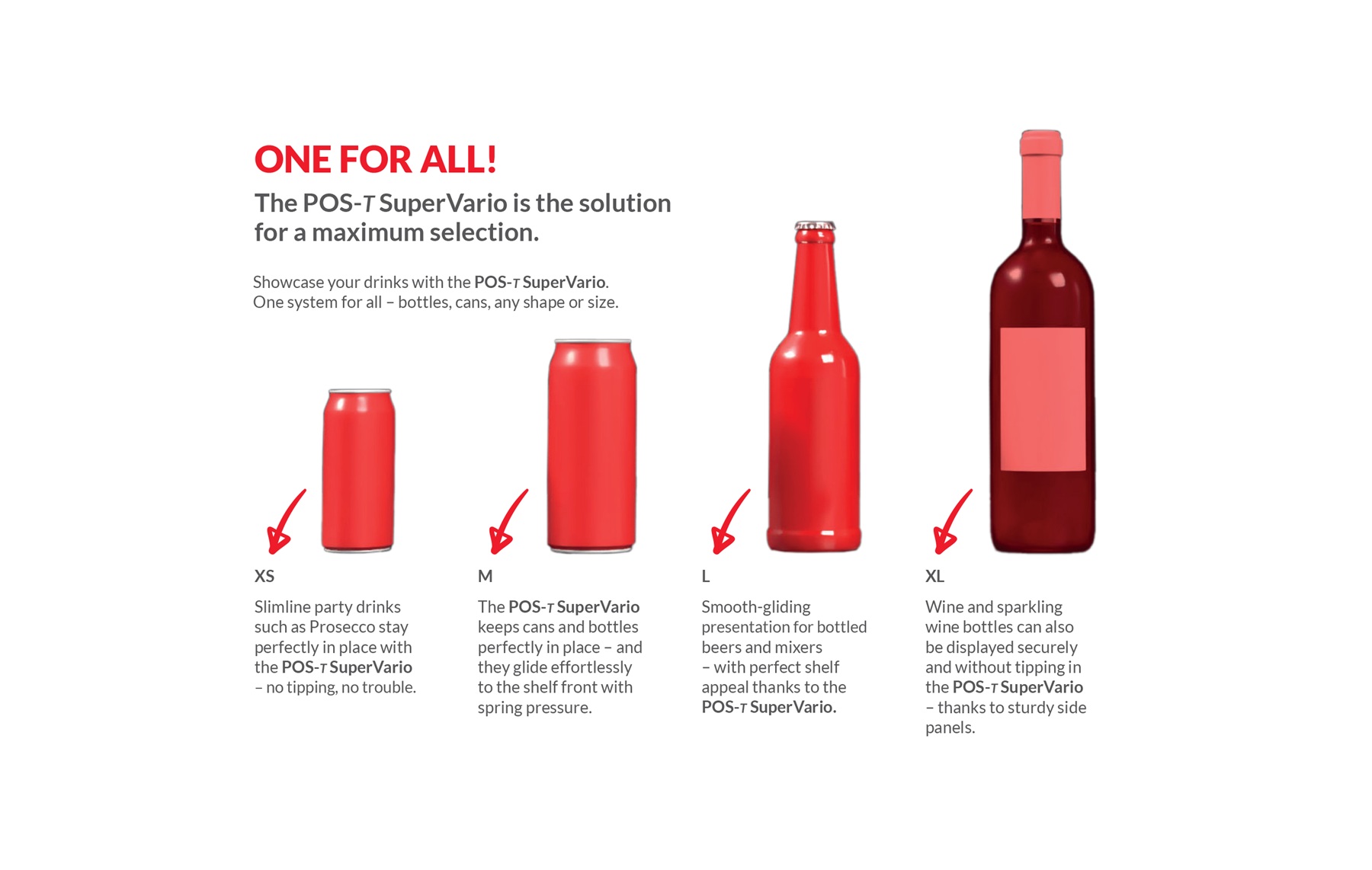

The SuperVario covers the full beverage range — from 250 ml (8.4 fl oz) slim energy drink cans to 1.5 L (50.7 fl oz) bottles. The channel width adjusts continuously between 2.09″ and 3.82″ (53–97 mm), so it fits standard 355 ml cans, 473 ml tall boys, 500 ml bottles, and 1 L cartons within the same range. It also handles cans, sauce bottles, and coffee cans outside the beverage category.
How do you adjust the channel width on the POS-T SuperVario?
Insert one finger into the opening in the middle of the channel's guide profile bottom and gently pull. The side sections open continuously from 53 mm to 97 mm (2.09″ to 3.82″). No tools are required — the full name "SuperVario" refers to this super-variable adjustment in width, height, depth, and length. The adjustment takes seconds and can be done mid-aisle with product still in the channel.
What shelf depths is the POS-T SuperVario available in?
Two depths: 22.83″ (580 mm) and 18.90″ (480 mm). Both can be shortened in 1″ (25 mm) increments up to 3.94″ (100 mm) — so a 580 mm channel can be reduced to 480 mm, and a 480 mm channel to 380 mm. This covers virtually every standard grocery gondola shelf depth without cutting or ordering custom lengths.
Can the POS-T SuperVario present two products stacked on top of each other?
Yes. With the addition of side strings, the SuperVario converts to a two-tier stacking solution — cans or bottles can be presented on top of each other for high-impact aisle displays or wherever shelf height permits double-stacking. Contact ExpoShelf to confirm which stacking accessories are required for your specific product dimensions.
How do I order the POS-T SuperVario in Canada or the US?
ExpoShelf is the official POS Tuning distributor for Canada and the US, based in Metro Vancouver, BC. Request a quote, sample, or free online demo through Contact Form — typical response within one business day. You can also request the full product catalog to review the complete SuperVario range and compatible Adapter-T Rail accessories.
Ready to Stop Losing 5% of Beverage Sales Every Week?
Book a free online demo to see the SuperVario adjust between beverage formats in real time. Tell us your shelf depth, gondola count, and beverage SKU range and we'll confirm the right channel configuration and quantities. Sample units are available before committing to a full bay reset. You can also request our full product catalog to review the complete POS Tuning system range.
